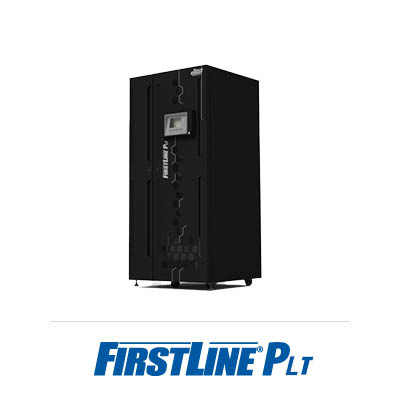

10-40 kVA Three Phase, On-Line Double Conversion, Uninterruptable Power System

FirstLine PL/PLT

10-60 kVA
Three Phase, On-Line Double Conversion, Uninterruptible Power Supply

In the event of an AC power failure, the FirstLine® PL/PLT UPS will automatically transfer to battery power and continue to provide power without any interruption for the full amount of time you select. When power returns, the FirstLine®PL/PLT UPS will automatically recharge the batteries for the next unexpected power outage or disturbance.




  • Hasta el 94 % de eficiencia
        o Reducción de los costes de energía y la huella de carbono
  • Compacto y Confiable
        o baterías internas 10-60 kVA permiten una huella más pequeña
        o Funcionamiento del refrigerador prolonga la vida útil de los componentes internos
  • Actuación de entrada CA
        o factor de potencia de entrada de alta de 0,99
        o Entrada de baja distorsión de la corriente de < = 1 % ( THDi ) a plena carga
        o encendido suave función walk-in que garantiza rectificador progresiva puesta en marcha
  • IGBT y procesador de señal digital (DSP )
        o Reduce el impacto de la UPS en la oferta local
        o instalación simplifica donde hay capacidad de potencia limitada
  •     entrada dual
        o de alimentación principal y de emergencia secundaria incremento de energía de reserva resiliencia de configuración individual o paralelo del sistema
  • Adaptable RSS cancelación
        o El control avanzado con tecnología de cancelación de avance AFC para baja distorsión armónica
  • Seleccione Menú Display
        o Pantalla de uso fácil es fácil de ver y de uso intuitivo
  • Paralelo hasta 4 unidades
        o proporciona redundancia para aplicaciones de misión crítica sin hardware adicional
        o Kit paralelo , comunicación a través de tarjeta paralela CANBUS
  • Funciona como un acondicionador de alimentación de precisión
        o -0 modelos pueden funcionar como un acondicionador de alimentación ampliable a un SAI en el futuro
  • Conversión de frecuencia
        o Todas las unidades se pueden configurar como un convertidor de 50/60 Hz fequency Programa de Servicio a nivel nacional
        o el personal de servicio o capacitados Fábrica maximizar la vida del equipo
        o servicios completos de puesta en marcha y mantenimiento preventivo reduce el coste de propiedad
  • Garantía completa de dos años
  • Médico
  • Centros de Datos
  • Instalaciones Industriales
  • Educación
  • Gobierno

Product Selector | Firstline PLT

Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 408
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 408
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 408
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 950
Battery Runtime @ 100% Load (Internal): 36
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 950
Battery Runtime @ 100% Load (Internal): 36
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 950
Battery Runtime @ 100% Load (Internal): 36
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 735
Battery Runtime @ 100% Load (Internal): 18
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 735
Battery Runtime @ 100% Load (Internal): 18
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 735
Battery Runtime @ 100% Load (Internal): 18
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 630
Battery Runtime @ 100% Load (Internal): 9
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 630
Battery Runtime @ 100% Load (Internal): 9
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 47.1 x 20.3 x 33
Weight (lbs.): 630
Battery Runtime @ 100% Load (Internal): 9
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 659
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 659
Load kVA: 10
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1209
Load kVA: 10
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1164
Load kVA: 10
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1154
Load kVA: 10
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1114
Load kVA: 10
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1154
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1230
Battery Runtime @ 100% Load (Internal): 36
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1240
Battery Runtime @ 100% Load (Internal): 36
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1770
Battery Runtime @ 100% Load (Internal): 90
Load kVA: 10
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1464
Battery Runtime @ 100% Load (Internal): 36
Load kVA: 10
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1419
Battery Runtime @ 100% Load (Internal): 36
Load kVA: 10
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1409
Battery Runtime @ 100% Load (Internal): 35
Load kVA: 10
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1369
Battery Runtime @ 100% Load (Internal): 36
Load kVA: 10
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1409
Battery Runtime @ 100% Load (Internal): 35
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 996
Battery Runtime @ 100% Load (Internal): 18
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1302
Battery Runtime @ 100% Load (Internal): 44
Load kVA: 10
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1354
Battery Runtime @ 100% Load (Internal): 18
Load kVA: 10
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1309
Battery Runtime @ 100% Load (Internal): 18
Load kVA: 10
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1299
Battery Runtime @ 100% Load (Internal): 18
Load kVA: 10
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1259
Battery Runtime @ 100% Load (Internal): 18
Load kVA: 10
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1299
Battery Runtime @ 100% Load (Internal): 18
Load kVA: 10
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1033
Battery Runtime @ 100% Load (Internal): 9
Load kVA: 10
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1319
Battery Runtime @ 100% Load (Internal): 9
Load kVA: 10
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1274
Battery Runtime @ 100% Load (Internal): 9
Load kVA: 10
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1264
Battery Runtime @ 100% Load (Internal): 9
Load kVA: 10
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1224
Battery Runtime @ 100% Load (Internal): 9
Load kVA: 10
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1264
Battery Runtime @ 100% Load (Internal): 9
Load kVA: 15
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 659
Load kVA: 15
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 659
Load kVA: 15
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1183
Load kVA: 15
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1179
Load kVA: 15
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1232
Load kVA: 15
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1088
Load kVA: 15
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1232
Load kVA: 15
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1206
Battery Runtime @ 100% Load (Internal): 21
Load kVA: 15
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1206
Battery Runtime @ 100% Load (Internal): 21
Load kVA: 15
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1770
Battery Runtime @ 100% Load (Internal): 53
Load kVA: 15
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1438
Battery Runtime @ 100% Load (Internal): 21
Load kVA: 15
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1434
Battery Runtime @ 100% Load (Internal): 21
Load kVA: 15
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1487
Battery Runtime @ 100% Load (Internal): 21
Load kVA: 15
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1343
Battery Runtime @ 100% Load (Internal): 21
Load kVA: 15
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1487
Battery Runtime @ 100% Load (Internal): 21
Load kVA: 15
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 965
Battery Runtime @ 100% Load (Internal): 11
Load kVA: 15
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1270
Battery Runtime @ 100% Load (Internal): 27
Load kVA: 15
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1688
Battery Runtime @ 100% Load (Internal): 11
Load kVA: 15
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1684
Battery Runtime @ 100% Load (Internal): 11
Load kVA: 15
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1737
Battery Runtime @ 100% Load (Internal): 10
Load kVA: 15
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1593
Battery Runtime @ 100% Load (Internal): 11
Load kVA: 15
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1737
Battery Runtime @ 100% Load (Internal): 10
Load kVA: 15
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 867
Battery Runtime @ 100% Load (Internal): 4
Load kVA: 15
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1293
Battery Runtime @ 100% Load (Internal): 4
Load kVA: 15
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1289
Battery Runtime @ 100% Load (Internal): 4
Load kVA: 15
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1342
Battery Runtime @ 100% Load (Internal): 4
Load kVA: 15
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1198
Battery Runtime @ 100% Load (Internal): 4
Load kVA: 15
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HRL1234W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1342
Battery Runtime @ 100% Load (Internal): 4
Load kVA: 20
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 690
Load kVA: 20
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 700
Load kVA: 20
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1493
Load kVA: 20
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1529
Load kVA: 20
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1332
Load kVA: 20
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1292
Load kVA: 20
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1332
Load kVA: 20
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1230
Battery Runtime @ 100% Load (Internal): 15
Load kVA: 20
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1240
Battery Runtime @ 100% Load (Internal): 15
Load kVA: 20
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1770
Battery Runtime @ 100% Load (Internal): 36
Load kVA: 20
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1743
Battery Runtime @ 100% Load (Internal): 15
Load kVA: 20
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1779
Battery Runtime @ 100% Load (Internal): 15
Load kVA: 20
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1582
Battery Runtime @ 100% Load (Internal): 14
Load kVA: 20
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1542
Battery Runtime @ 100% Load (Internal): 15
Load kVA: 20
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1582
Battery Runtime @ 100% Load (Internal): 14
Load kVA: 20
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 996
Battery Runtime @ 100% Load (Internal): 7
Load kVA: 20
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1302
Battery Runtime @ 100% Load (Internal): 18
Load kVA: 20
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1993
Battery Runtime @ 100% Load (Internal): 7
Load kVA: 20
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 2029
Battery Runtime @ 100% Load (Internal): 7
Load kVA: 20
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1832
Battery Runtime @ 100% Load (Internal): 6
Load kVA: 20
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1792
Battery Runtime @ 100% Load (Internal): 7
Load kVA: 20
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1832
Battery Runtime @ 100% Load (Internal): 6
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 584
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 584
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 584
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 1125
Battery Runtime @ 100% Load (Internal): 8
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 1125
Battery Runtime @ 100% Load (Internal): 8
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 1125
Battery Runtime @ 100% Load (Internal): 8
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 690
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 700
Load kVA: 30
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1319
Load kVA: 30
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1323
Load kVA: 30
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1495
Load kVA: 30
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1243
Load kVA: 30
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1495
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1230
Battery Runtime @ 100% Load (Internal): 8
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1240
Battery Runtime @ 100% Load (Internal): 8
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1770
Battery Runtime @ 100% Load (Internal): 21
Load kVA: 30
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1569
Battery Runtime @ 100% Load (Internal): 8
Load kVA: 30
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1573
Battery Runtime @ 100% Load (Internal): 8
Load kVA: 30
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1745
Battery Runtime @ 100% Load (Internal): 8
Load kVA: 30
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1493
Battery Runtime @ 100% Load (Internal): 8
Load kVA: 30
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1745
Battery Runtime @ 100% Load (Internal): 8
Load kVA: 30
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1270
Battery Runtime @ 100% Load (Internal): 11
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 584
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 584
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 584
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 1185
Battery Runtime @ 100% Load (Internal): 5
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 1185
Battery Runtime @ 100% Load (Internal): 5
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 52 x 23.20 x 33
Weight (lbs.): 1185
Battery Runtime @ 100% Load (Internal): 5
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 690
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 700
Load kVA: 40
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1416
Load kVA: 40
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1455
Load kVA: 40
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1639
Load kVA: 40
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1294
Load kVA: 40
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: NO BATTERY
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1639
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1230
Battery Runtime @ 100% Load (Internal): 5
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1240
Battery Runtime @ 100% Load (Internal): 5
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1770
Battery Runtime @ 100% Load (Internal): 15
Load kVA: 40
Input Voltage: 208
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1666
Battery Runtime @ 100% Load (Internal): 5
Load kVA: 40
Input Voltage: 480
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1705
Battery Runtime @ 100% Load (Internal): 5
Load kVA: 40
Input Voltage: 480
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1889
Battery Runtime @ 100% Load (Internal): 4
Load kVA: 40
Input Voltage: 480Y/277
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1544
Battery Runtime @ 100% Load (Internal): 5
Load kVA: 40
Input Voltage: 480Y/277
Output Voltage: 480Y/277
Internal Maintenance Bypass: Yes
Internal Batteries: HR1290W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1889
Battery Runtime @ 100% Load (Internal): 4
Load kVA: 40
Input Voltage: 208Y/120
Output Voltage: 208Y/120
Internal Maintenance Bypass: Yes
Internal Batteries: HR1251W
Dimensions (H" x W" x D"): 72.4 x 23.1 x 34.5
Weight (lbs.): 1270
Battery Runtime @ 100% Load (Internal): 7

Armario Superior de Entrada de Cable: FLP-T-CECArmario de DistribuciónArmario del Transformador: 10-15kVAArmario del Transformador: 20-30kVAArmario del Transformador: 40kVAArmario del Transformador: FLP-020-TC-4Y-4Y-MBPS-4YBArmario del Transformador: FLP-030-TC-40-4Y-B-2IArmario del Transformador: FLP-040-TC-4D-2Y-MBPS-2IArmario del Transformador: FLP-040-TC-4D-4Y-B-4DBTBypass Cabinet (Floor Mount): 40-50kVABypass Cabinet (Floor Mount): 80-100kVABypass Panel (Wall Mount): 10-15kVABypass Panel (Wall Mount): 20-40kVAExtended Runtime Armario de Batería: Modelos FLP-BAT-030-150-1-B-LB & FLP-BAT-030-150-1-N-LBExtended Runtime Armario de Batería: Modelos FLP-BAT-040-150-1-B-LB & FLP-BAT-040-150-1-N-LBExternal Armario de Batería: Modelos FLP-BAT-###-###-#-CSExternal Armario de Batería: Modelos FLP-BAT-###-###-#-CS55External Armario de Batería: Modelos FLP-BAT-015-###-#-#External Armario de Batería: Modelos FLP-BAT-020-###-#-# & FLP-BAT-030-###-#-#External Armario de Batería: Modelos FLP-BAT-040-###-#-# & FLP-BAT-050-###-#-#External Armario de Batería: Modelos FLP-BAT-080-150-1-N & FLP-BAT-100-200-1-NExternal Armario de Batería: Modelos FLP-BAT-080-150-2-B & FLP-BAT-100-200-2-BExternal Armario de Batería: Modelos FLP-BAT-200-#-## - FLP-BAT-620-#-##FirstLine PL: 10-20kVA UPSFirstLine PL: 30-40kVA UPSFirstLine PLT: 10-20kVA UPSFirstLine PLT: 30-40kVA UPSFirstLine PLT: 50-60kVA UPSPanel de Alarma de Estado Remoto: FLP-RSAPParallel Output Redundant Cabinet: 10-40kVAParallel Output Redundant Cabinet: Modelo FLP-10-POPC-5-R-4Y-2Y

Elija su ubicación

Encuentre un distribuidor en su área.

map
